Helmer Touch Screen Digital Stereo BT Amplifier,Home Speaker Music Player

Model No.:BM207M

Color: White&Black

-It's integrated amplifier installed in wall and have control unit on wall that you can control by mobile phone(bluetooth-compatible) or by remote control.

-You have bluetooth-compatible connection to play music from your phone/pad/computer. Also you can play music from Micro USB or TF card.

-With extended antenna, you can connect to FM radio station.

-This unit is widely used for room for home, office, hotel,etc.

-It's recommended to connect with 4 speakers.

Product Features

Stereo Amplifier Module (2 x 15W) connect up to 4 speakers

Bluetooth-compatible connectivity for wireless audio input of iPhone, iPad, smartphones, etc

1 x Wired Audio Input (on rear PCB)

Micro USB and TF card player (at bottom of unit)

1x Wired Audio Output (on rear PCB)

Built-in FM radio(87-108MHz)

1 x RS485 connector

Music Player

Video Player

Time Display

Set time to turn on/off the unit

Infrared remote control

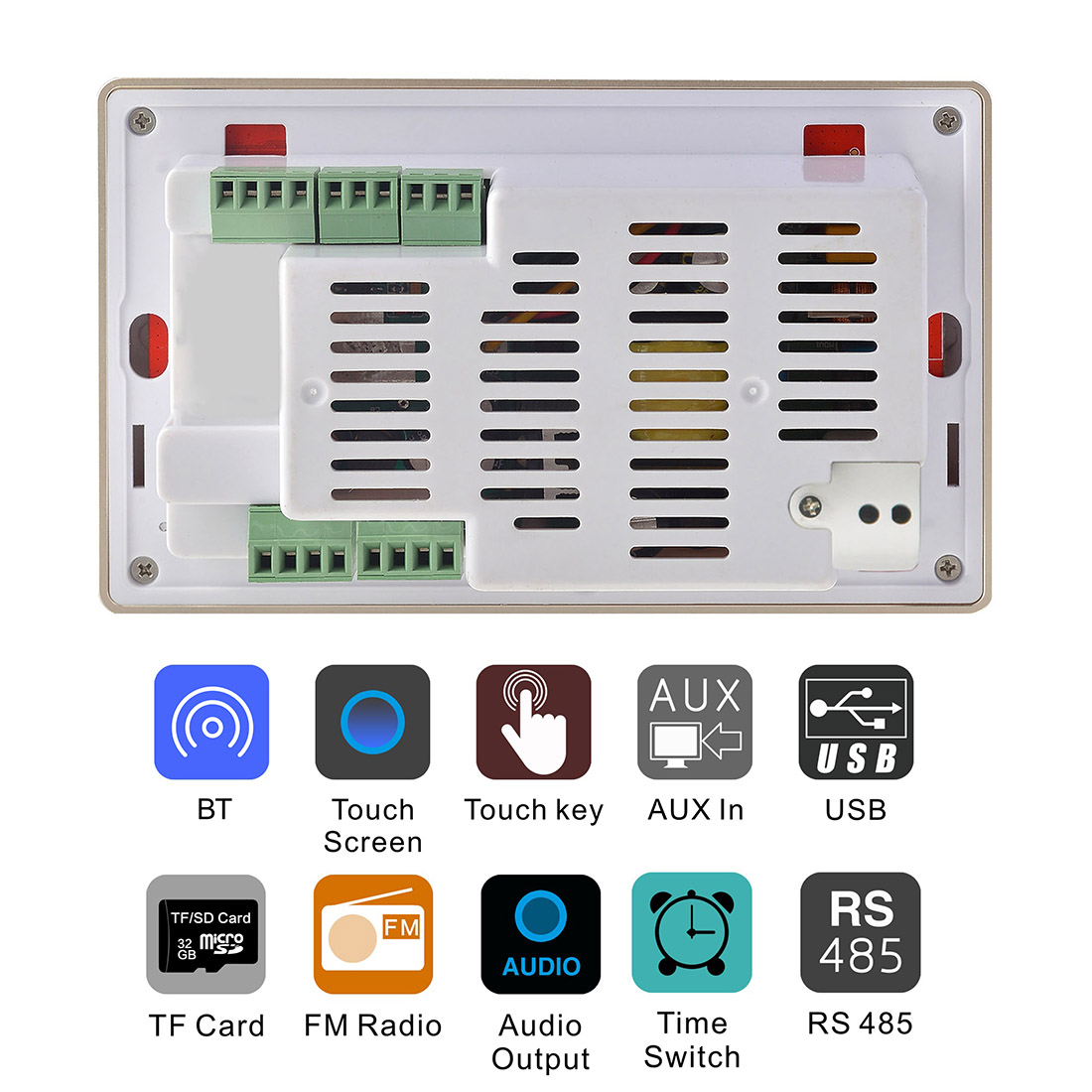

Screw terminations on the rear of the unit for loudspeakers, power and wired line input

Includes in-line power supply




Technical Specifications Package Content

Technical Specifications

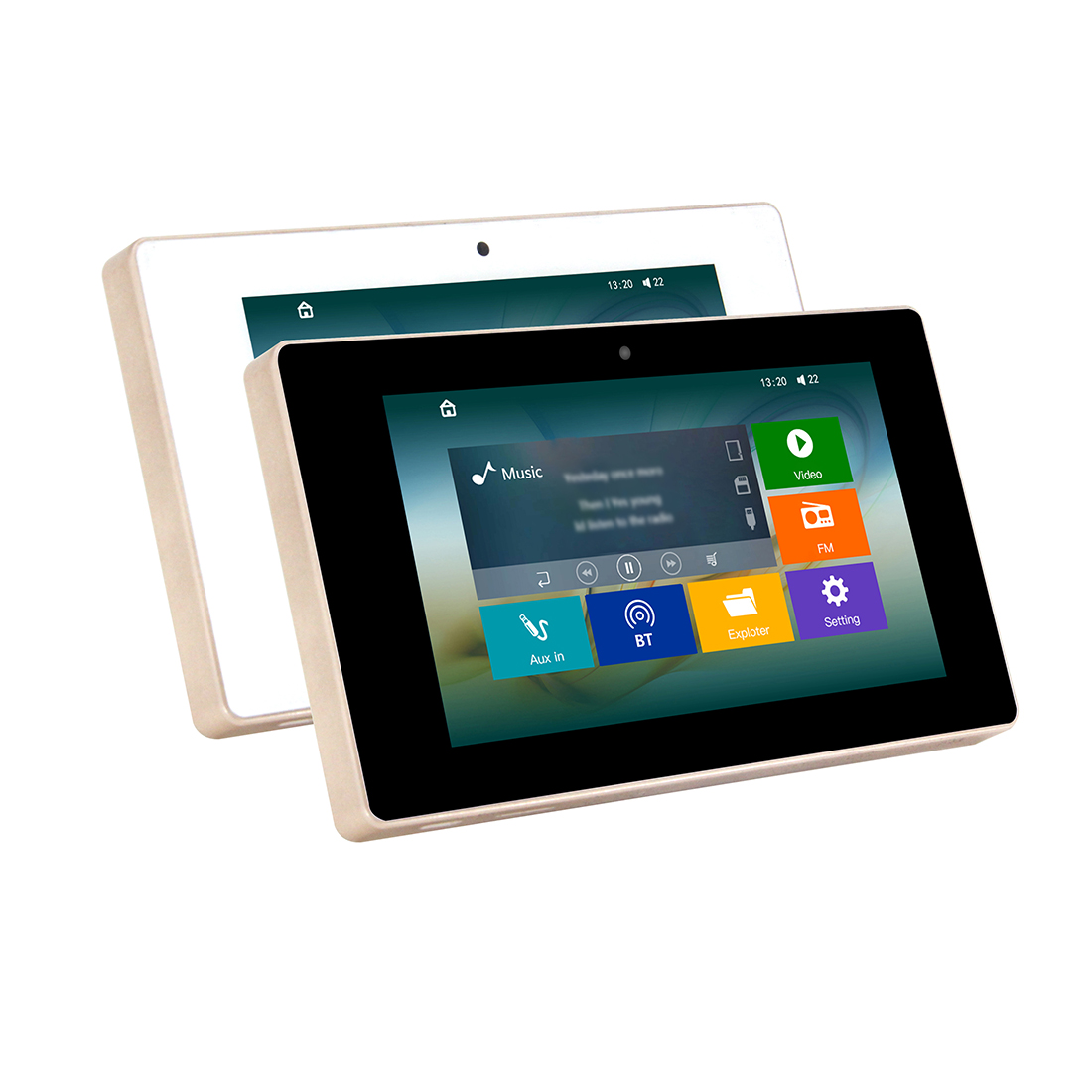

5" Capacitive Touch Screen(800*480)

Power Supply:  AC100-240V, 50-60Hz

Power Output(max): 2 x 15W @ 4Ω

Output Impedance: 8Ω

ROM: 1G, Extended Memory card up to 32G

BT Transmission Distance: 10M

Product Size: 148 x 90 x 50mm


1 x Amplifier

1 x mounting frame

2 x screws for mounting

1 x back box for in wall (H: 54mm)

1 x Micro USB to USB connector

1 x remote control (cell battery is not included)





Package Weight: 0.9kg (1.98lb.)

Package Size: 20cm x 17cm x 11cm (7.87in x 6.69in x 4.33in)
