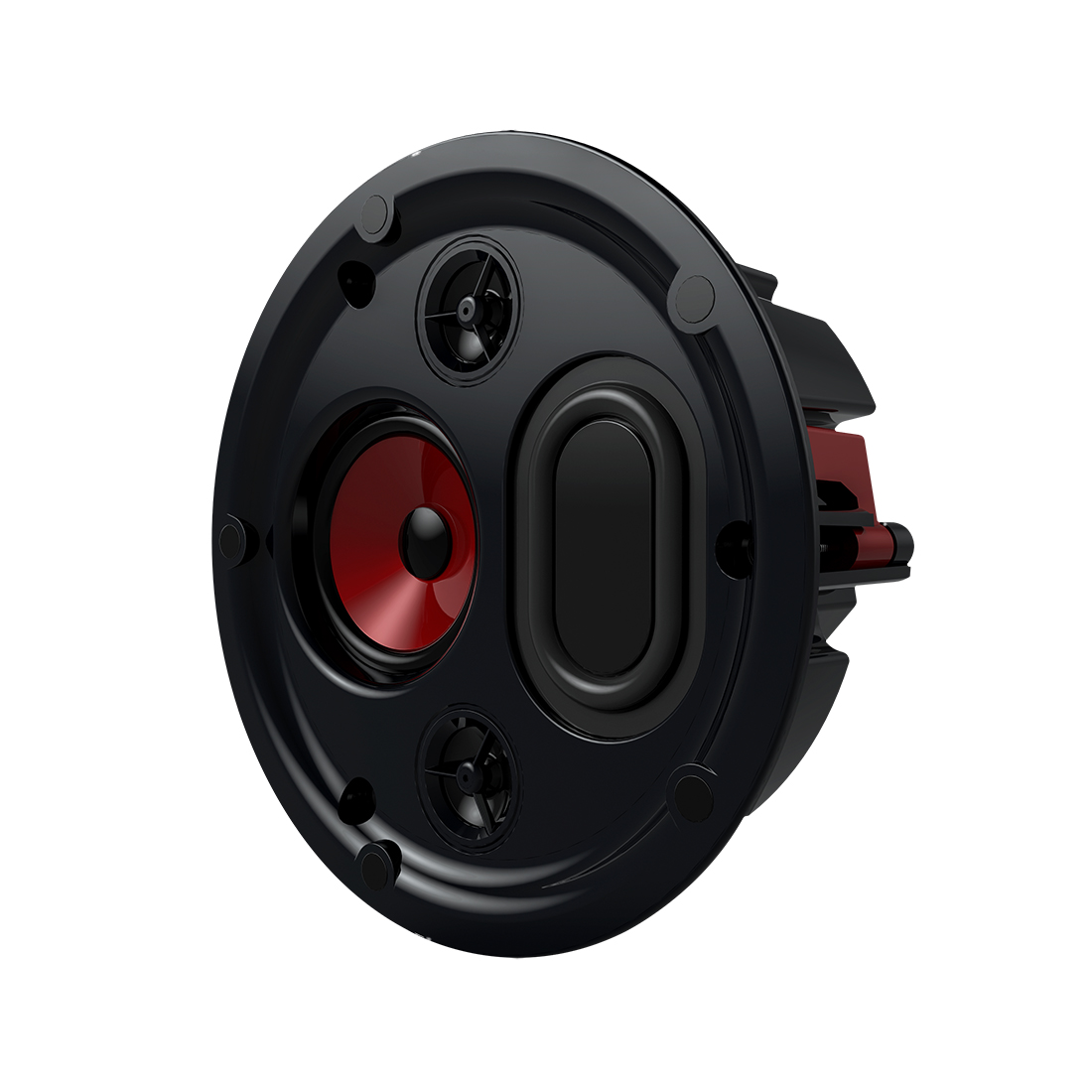

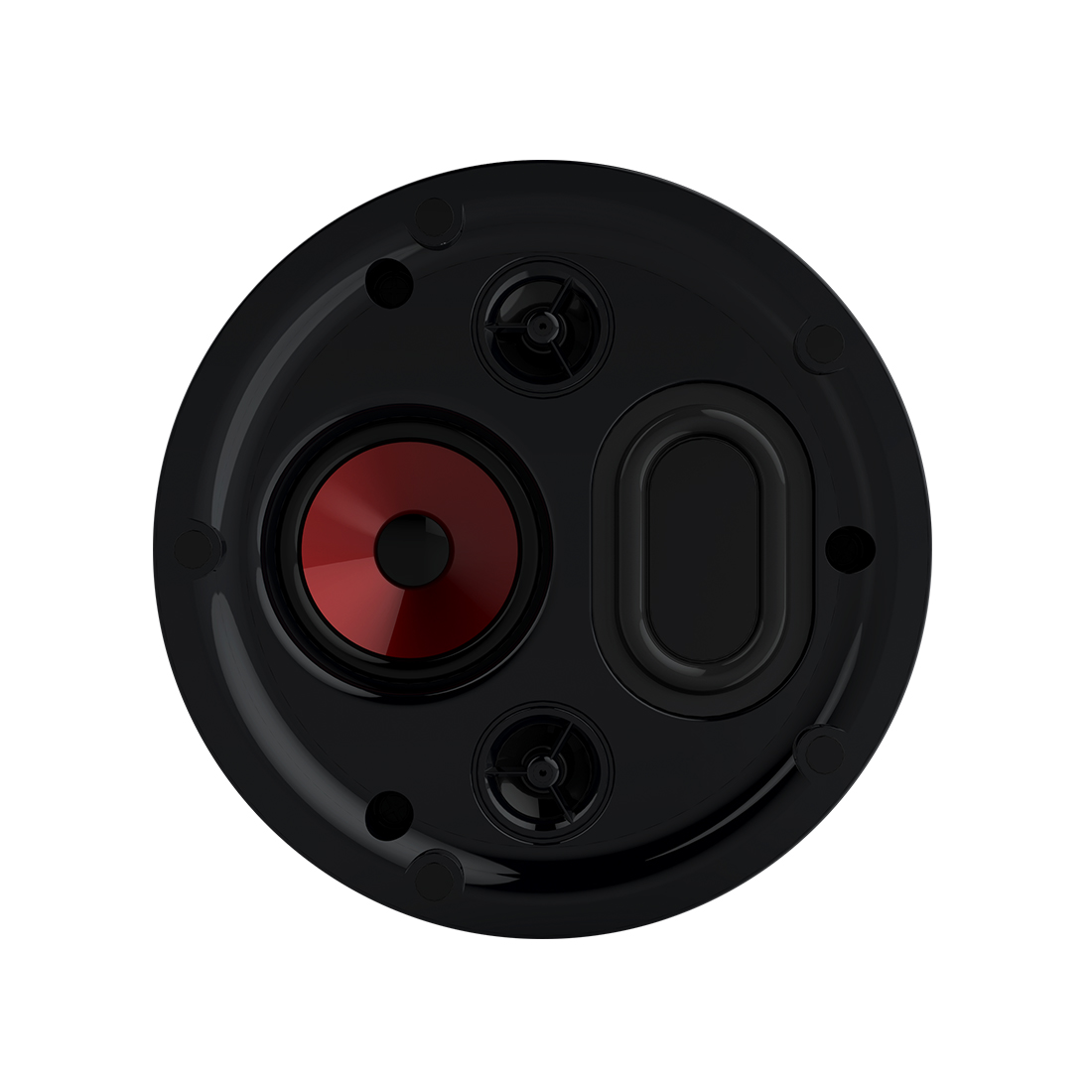

L10

Model No.:L10

•Highly efficient Class D amplifier (RMS 2 x 15W)

•BT connectivity for wireless audio input of smart phones, pad, etc

•BT range: ≤10m

•App for modifying the Bluetooth name and password.

•Screw terminal power input and speaker output connections

•Includes in-line power supply

•Easy installation


Technical Specifications Package Content

Input Voltage: AC100-240V 50/60Hz

Amplifier Output RMS Power: 2 x 15W

Bluetooth Version 5.0

Impedance: 8Ω

Speaker Unit: 2 x 1” PEI tweeter + 1 x 3”woofer + 1 x Passive Radiator (60x90)

Speaker Rated Power: 18W

Frequency Response: 45Hz-20KHz

Sensitivity: 87 ± 3dB

Bluetooth Transmission Distance: ≤10m

Product size: 205(diameter) x 73(depth) mm

Hole size for installation: 180-185mm
